Purchase the Power Station of FF Flashfish at the same time. Don't worry about the compatible problem, perfect output

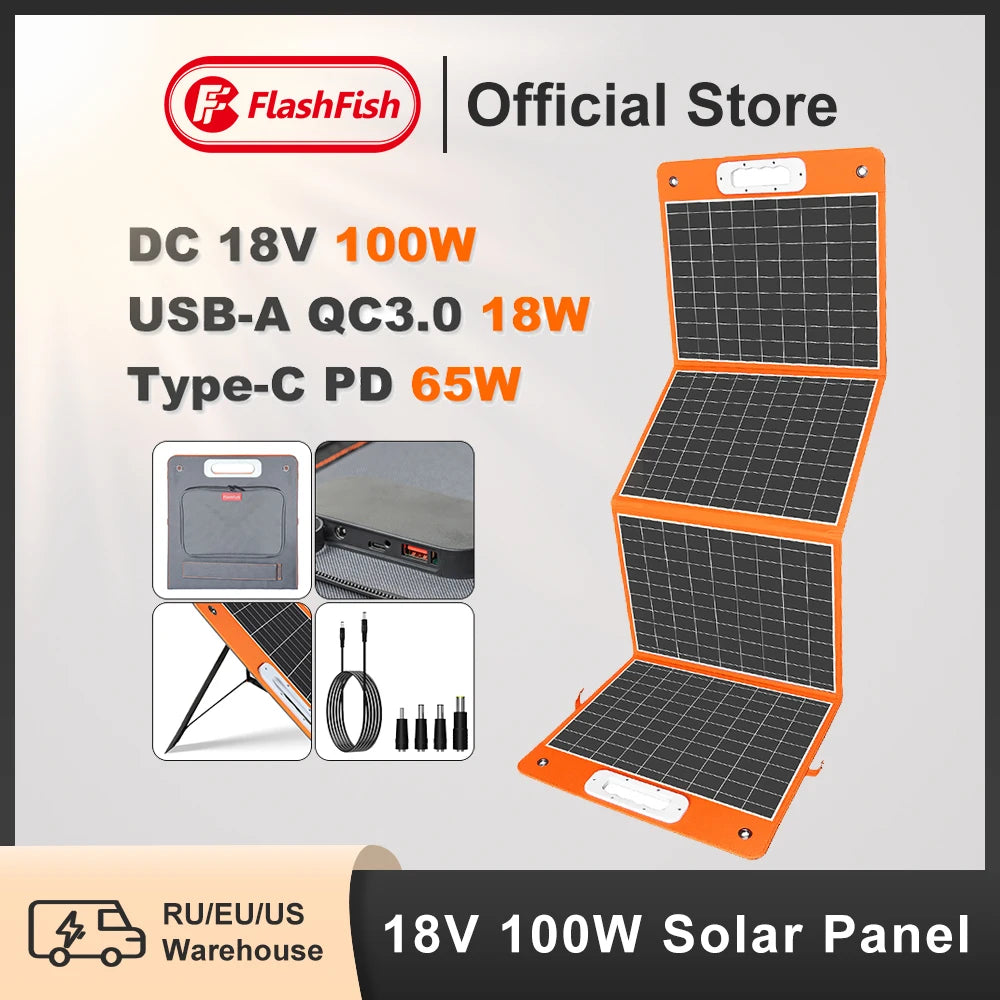

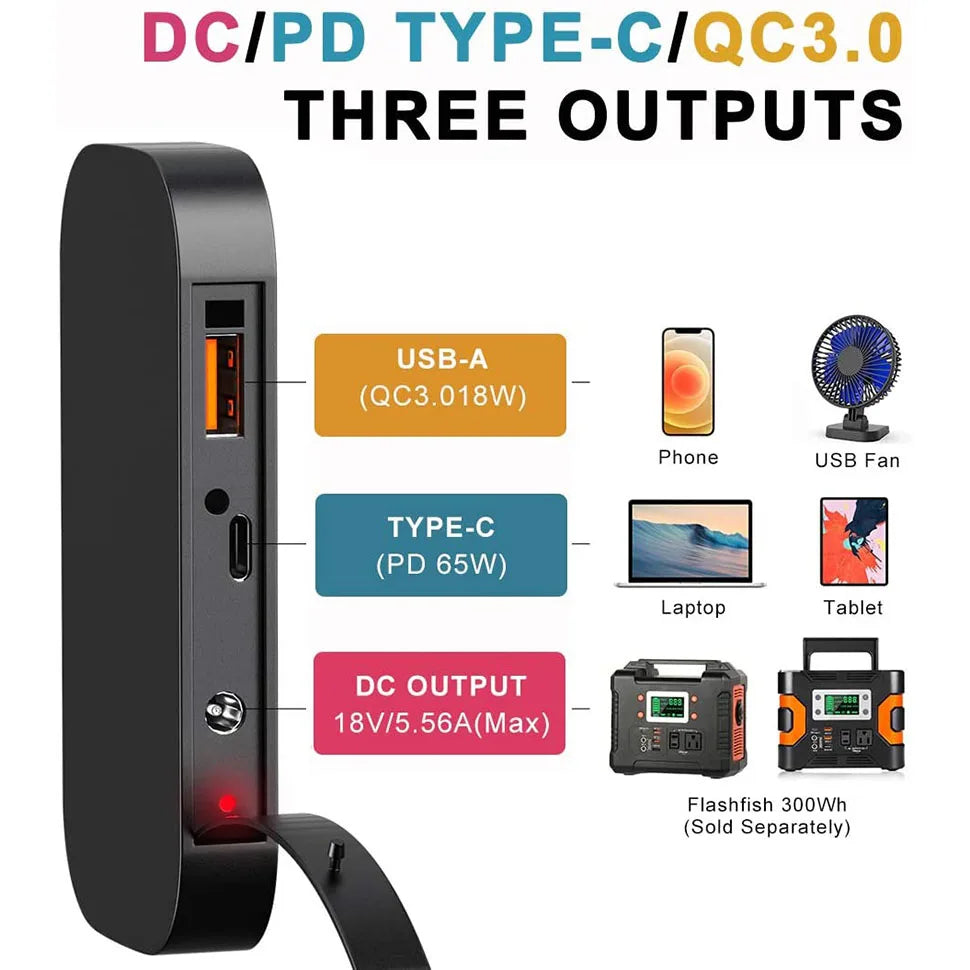

USB-A Output (QC3.0 18W)

Type-C Output (PD65W)

Flexible and Foldable

Easy to set up & Save Space

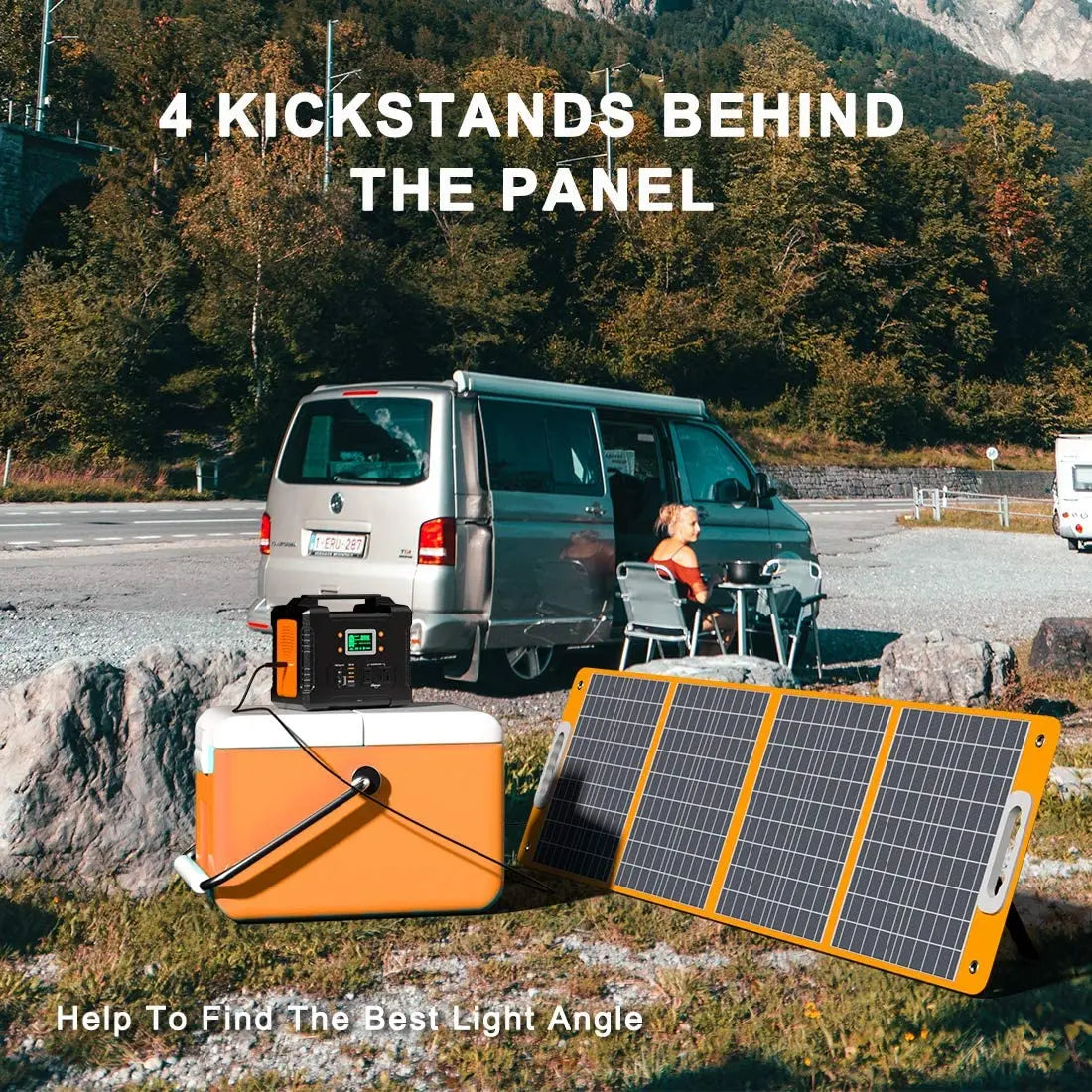

The portable solar panel captures more solar energy than lying flat by adjusting itskickstands to a perfect angle (45°+5°).

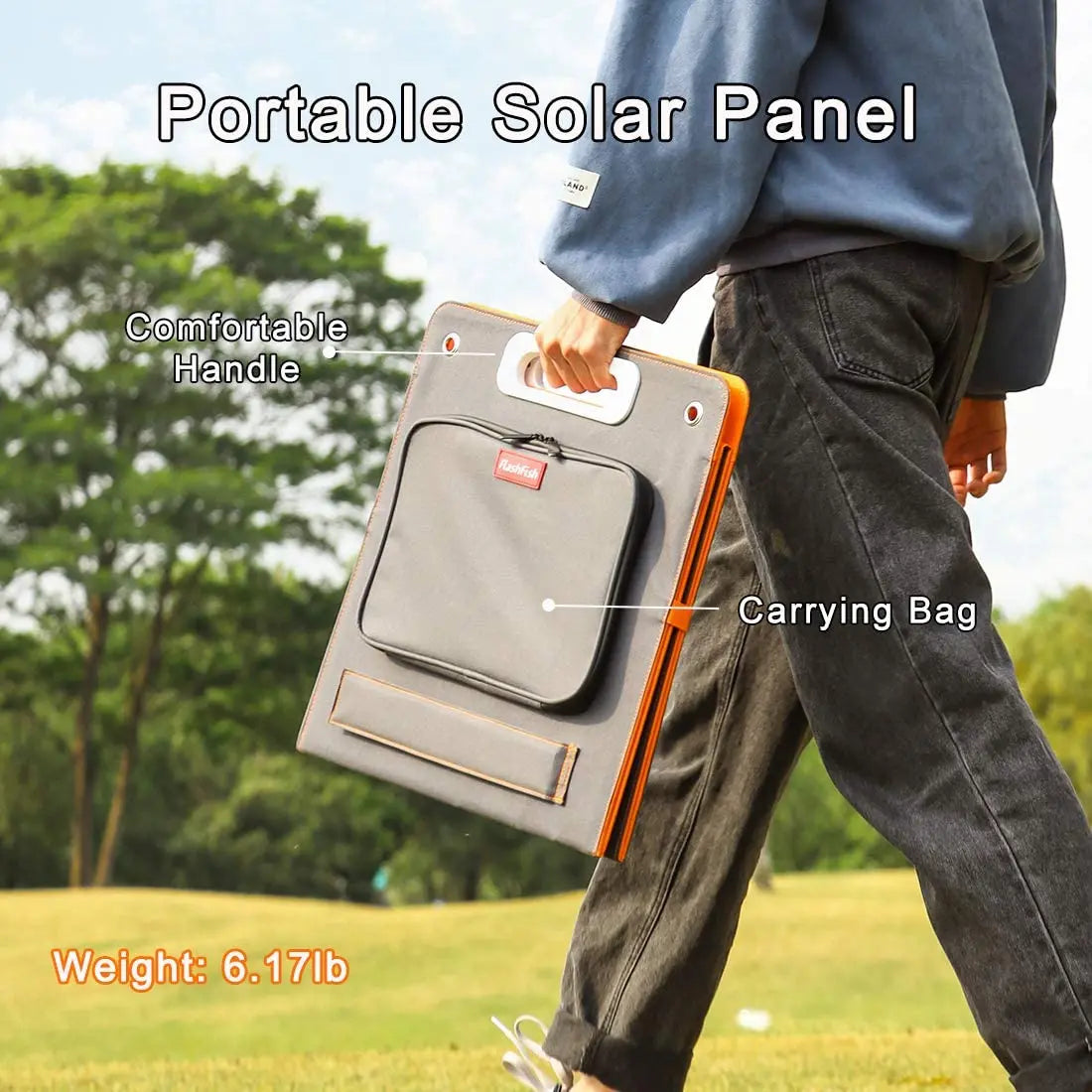

Handle Design More Portable

23.5% High Efficiency

Simple Operation

1. Unzip the zipper and find the port of the solar panel.
2. Plug one end of the cable into the DC output port of the solar panel (DC5521 female)
3. Plug one end of the cable into the input port of Power Station
(If you use other brands of Power Station, pay attention to the size of the port)
4. Successfully charged!

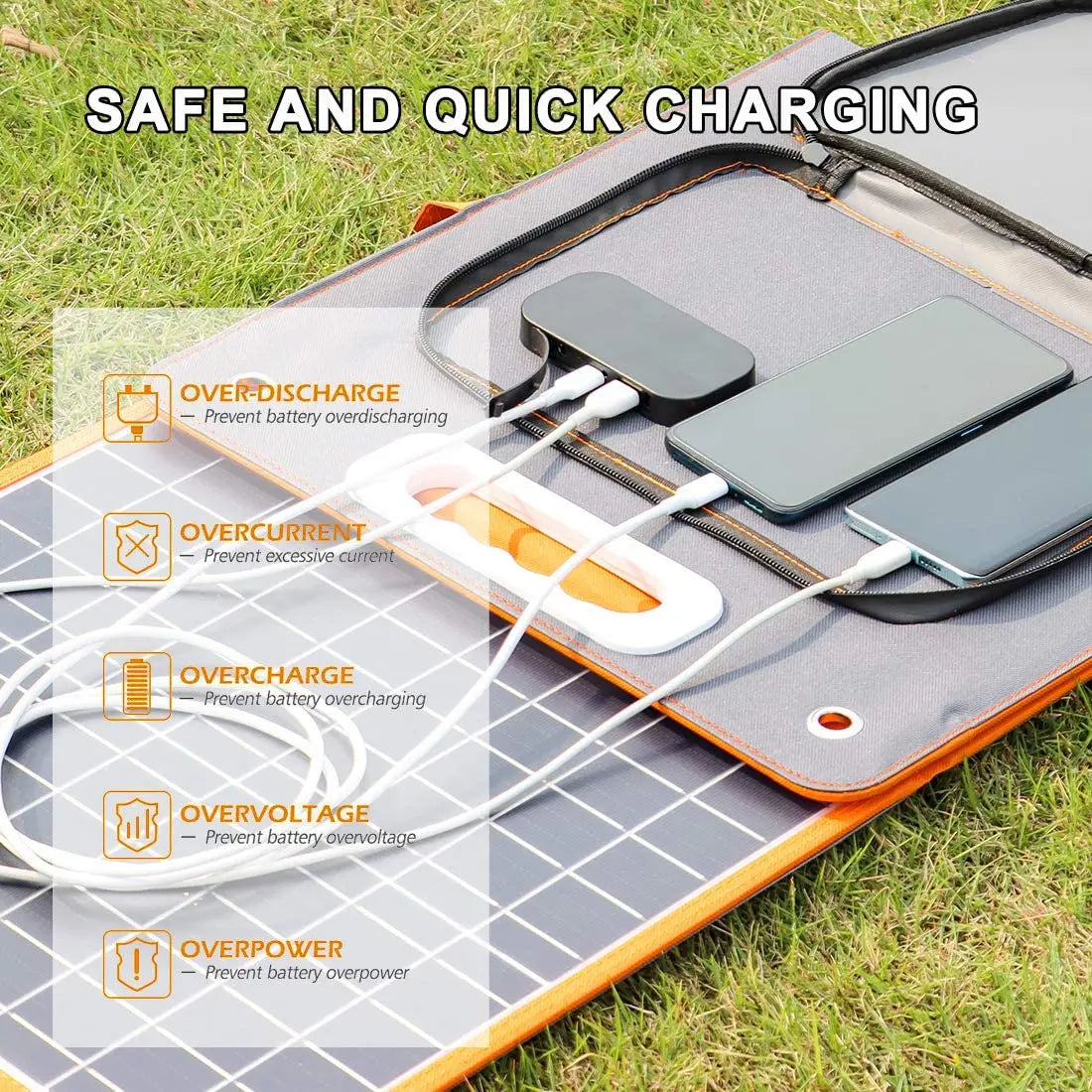

Safety ls A Top Priority

Stay safe with the most reliable cells and BMS
(Battery Management System)

√Over heating Protection
√Over Current Protection
√Over Voltage Protection
√Short Circuit Protection

# Related accessories you may need #

DC5521 Male to 2 DC5521 Female Cable

2pcs solar panels used in parallel
(Click the picture below to buy directly)

DC5521 Male to Anderson Male Cable

(Click the picture below to buy directly)

FAQ:

Q1:Why can't USB-C output?(USB-A, DC can output normally)

A2:
There are two reasons:
1. The solar energy is not strong enough to reach the USB-C fast charging power. (It is suggest to use the solar panel at noon without any shelter.)
2. USB-C uses the PD protocol, and the two parties' protocols must match each other for normal output. The device may not match the PD protocol of the solar panel. Matching takes about 1 minute.

Q2: Is the FF Flashfish soalr panel waterproof?

A2: No, the FF Flashfish Solar Panel is not waterproof. To Maximize the lifespan of the module,Please don't make it get wet.

Q3: How long does it take for 2pcs TSP18V100W to fully charge the A501?

A3: The maximum input of A501 is 120W. The utilization rate of solar panels is generally 60%. 200W*60%=120W. 540WH/(120W*90%)=5h, 5h*1.1=5.5h.
In the case of sufficient sunlight, it takes about 5.5 hours for 2pcs TSP18V100W to fully charge the A501.
(Other power stations are also calculated in the same way)

Q4: Why is the output power of solar panels low?

A4: Too many white clouds will affect the lighting conditions, and solar panels absorb light energy instead of heat energy.
(1) The intensity of light: such as haze weather, cloudy weather and other weather will be far less than the nominal data.
(2) Surface temperature: The lower the surface temperature, the better the power performance. Therefore, the output of solar panels in winter will be much higher than in summer. The temperature of the light in summer is close to 60°C, so even if the light is good, it will be 13% lower than the nominal % power.
(3) The angle of the sun's rays: the effect of vertical 90°C is the best.
(4) Whether there is occlusion: Any occlusion will affect the efficiency. For example: projection, foreign objects, glass, tree branches, tents, etc.

Note:

1. Solar panel charge conversion depends on the angle of direct sunlight, temperature,
weather, charging time
2. Always face the front side of solar panel toward the sun to get maximum effiffifficiency
3. Please make sure the solar panel is completely unfolded when using
4. Solar panel can not store power, can only convert the sun power to electricity energy
