SPECIFICATIONS
Application: For RV Campers Golf Cart Off-Road Off-Grid Solar
Brand Name: KEPWORTH
Capacity: 100AH 120AH 200AH
Certificate: CE,ROHS,MSDS,UN38.3, UL
Certification: CE,FCC,RoHS,weee
Cycle Life: More Than 6000 Cycles
End Voltage: 10V
Hign-concerned Chemical: None
Material: Lithium Iron Phosphate
Max Protection Voltage: 14.6V
Maximum Charging Current: 0.5C
Model Number: 12V 24V 100AH 120AH 200Ah
Nominal Capacity: 100ah/120ah/200ah
Origin: Mainland China
Size: 352*174*190mm/393*174*190mm
Type: LiFePO4
Voltage: 12V
Weight: 10kg/12.5kg/19.5kg/18.8kg
Working Temperature: -20 ~ 60 ℃
About us:
We are a battery manufacturer and all the batteries are the latest. We have lithium/LiFePO4 batteries, accept customized battery pack, we can't update all items here.
If you want any others, please take it easy to contact with me and tell me your requirement (the capacity / voltage / size / discharge current ) , thanks!
KEPWORTH LiFePO4 Energy Storage Battery
12V 100Ah 120Ah 200Ah 24V 100Ah Lithium Iron Phosphate Battery Deep Cycle LiFePO4 Batteries Built-in Bluetooth Life More Than 6000 CyclesFor RV Campers Golf Cart Off-Road Off-grid Solar Storage Wind energy
Used For:
Solar Panel Power Bank System, Solar VRLA 12V 24V 36V 48V 60V Off-grid Applications, Trolling Motor, Mobility Scooter Wheelchair, Electronics, Wheelchair, Scooter, Industrial and Medical Equipment, Golf Carts, Hunting, Lawn and Garden Tools, Portable Tools, Toys and Hobby, Emergency Lighting, Leisure, RV House, Security and more. (Not for Motorcycle ATV Engine Starts)
About this item:
Capacity: 100Ah 120Ah 200Ah
Battery Material:Lithium Iron Phosphate(LiFePO4) battery
Nominal voltage: 12.8V
Rated voltage: 12V
Max Protection Voltage: 14.6V
End Voltage: 10V
Instantaneous discharge current:2C
Continuous discharge current: 1C
Size and Weight:

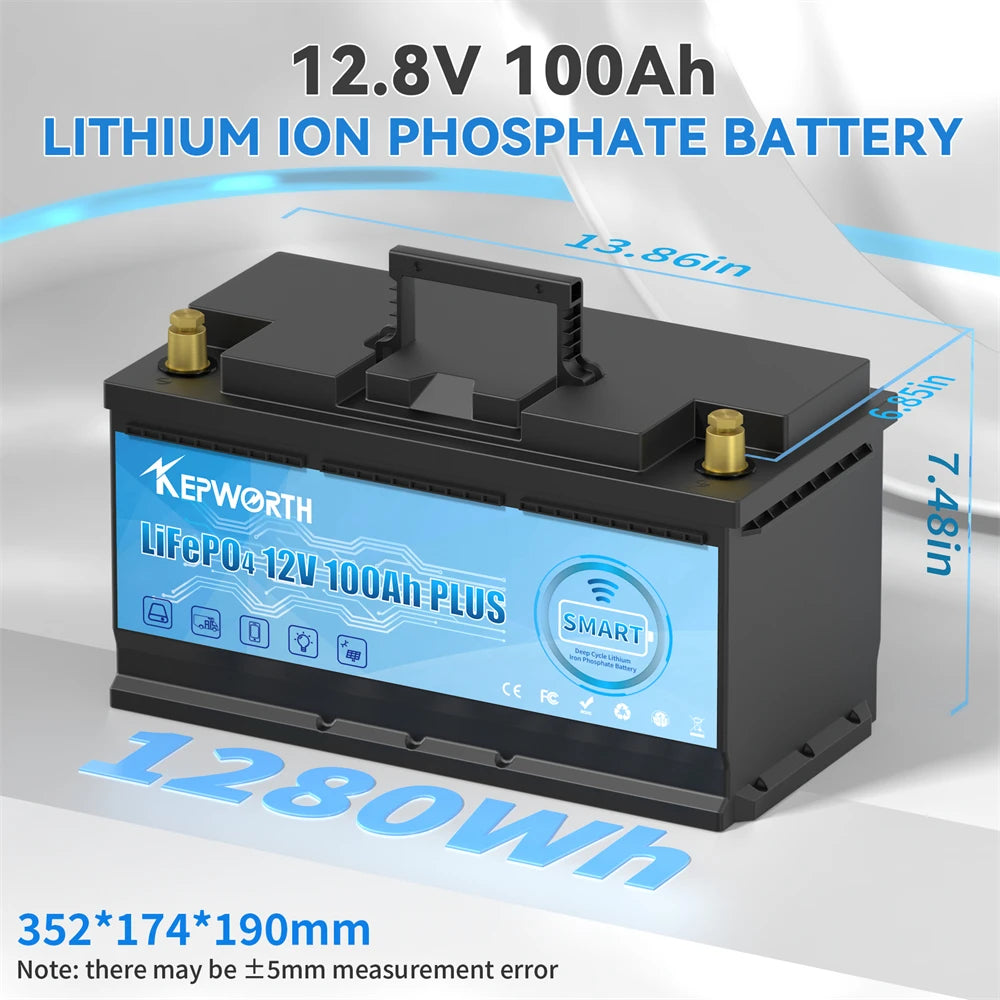

12V 100Ah: 352*174*190mm, weight: 10kg

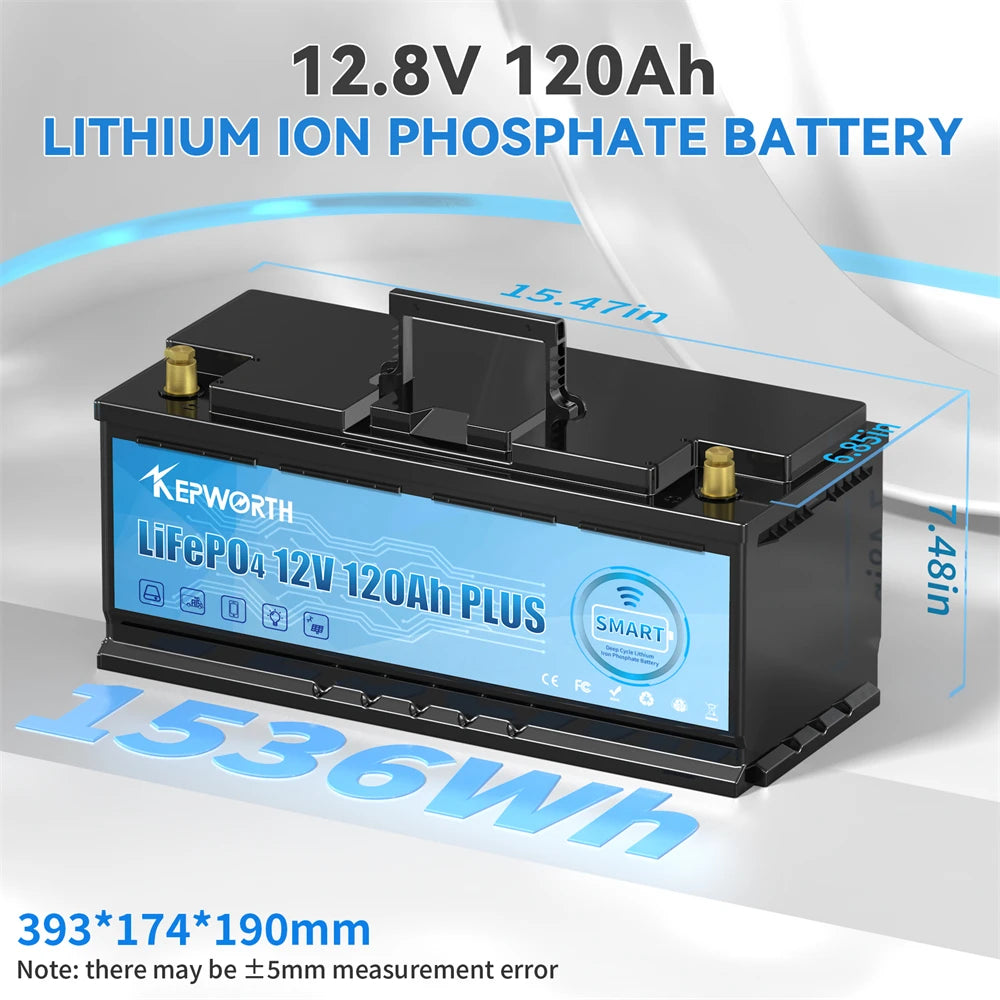

12V 120Ah: 393*174*190mm, weight: 12.5kg

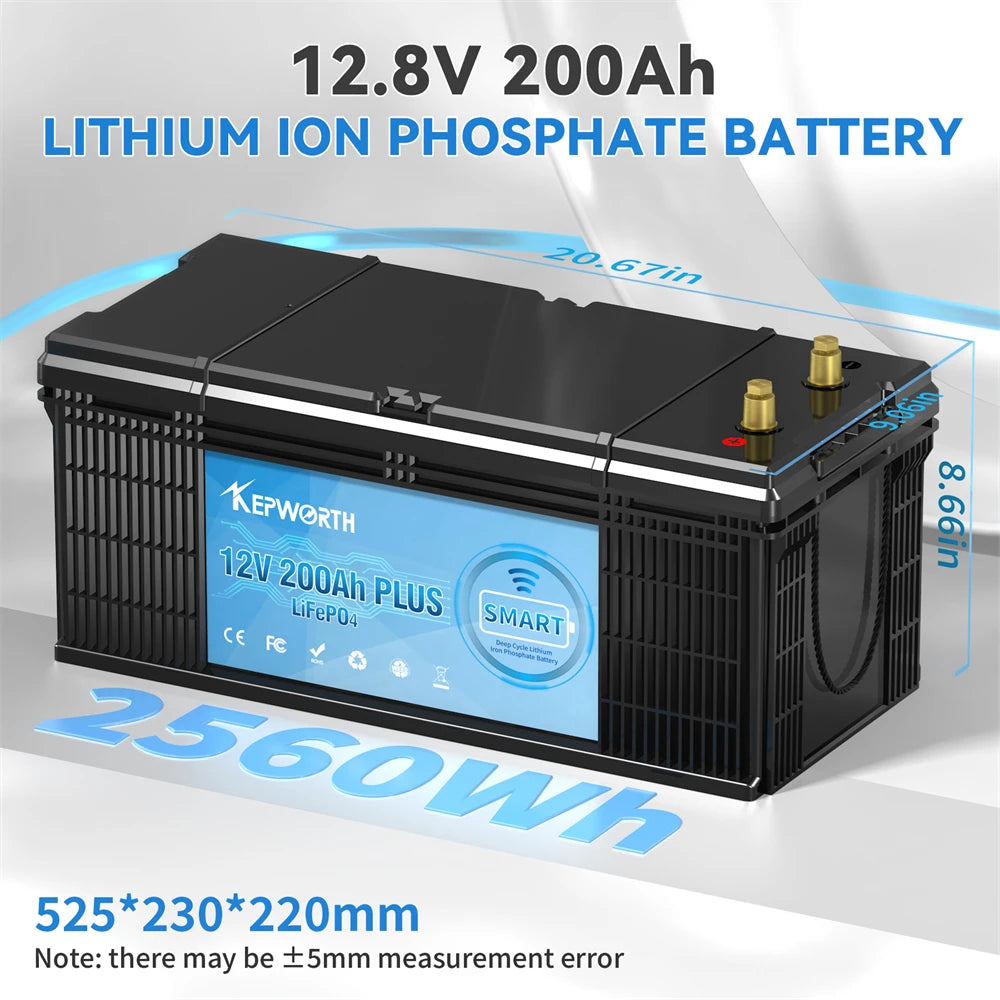

12V 200Ah: 525*230*220mm, weight: 19.5kg

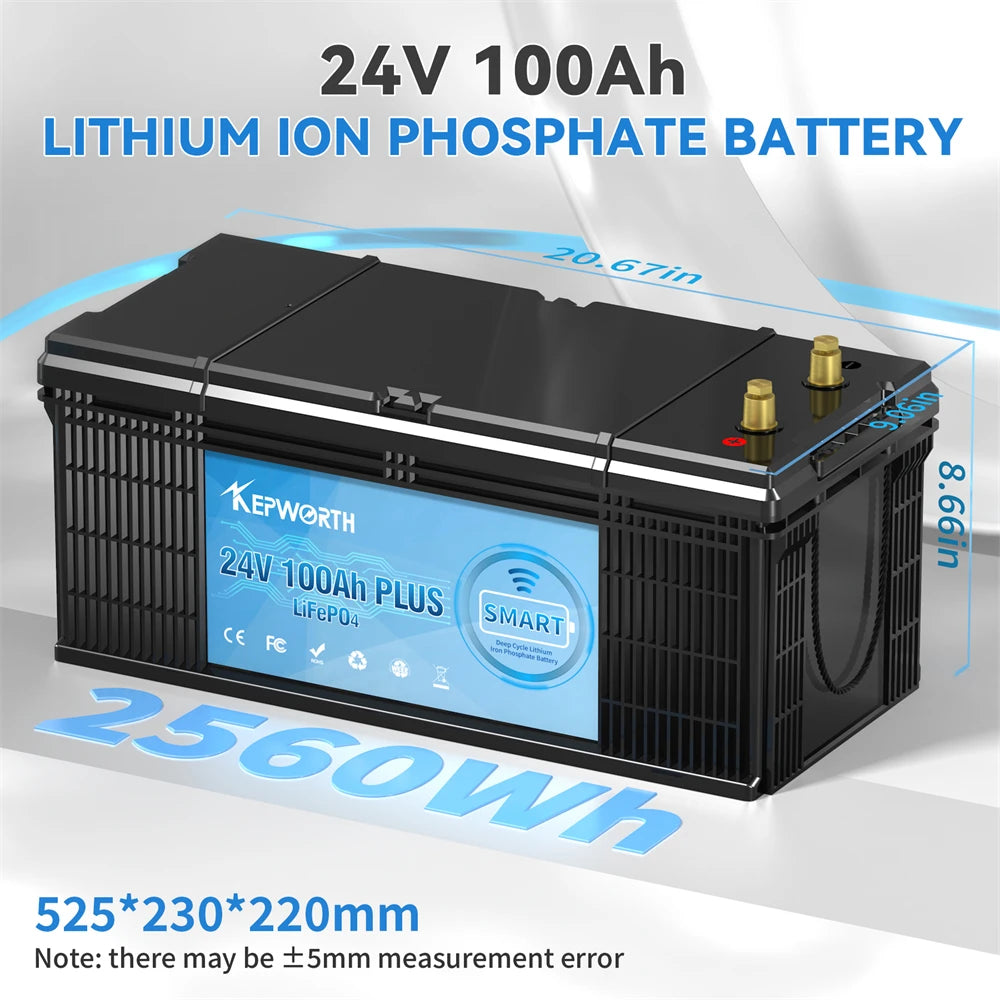

24V 100Ah: 525*230*220mm, weight: 18.8kg
Certificate: CE ROHS MSDS UN38.3
Upgrade Parts/Accessories: Grade A
Voltage Protection Board(BMS): Yes
Cycles Life: 2000 Cycles----100% 6000 Cycles-----70%
Max Charge Current: 0.5C
Working temperature : -20 ~ 60 ℃
Charge temperature: 0-45℃
Warranty: 2YEARS
Advantages:
It has excellent safety performance and high efficiency and stability working performance than traditional Lead acid battery.
1. Low self discharge rate: It can be stored for more than 1 years ( and normal lead acid can only be stored with less than 6 months ).

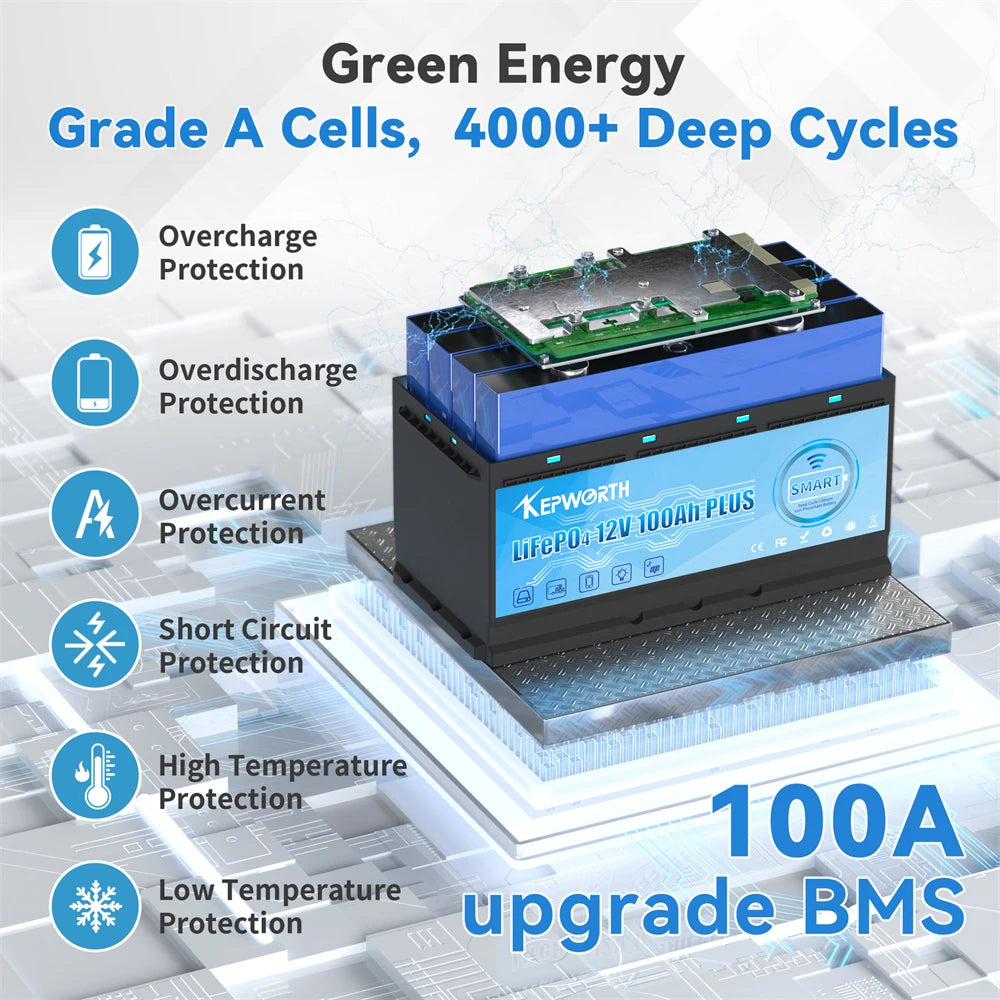

2. Built-in BMS: BMS stands for "Battery Management System" - the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.
3. Lithium ion Technology: Unlike Lead Acid batteries, Battle Born's deep cycle lithium ion batteries have unlimited mounting capability, exceptional longevity, and are more cost effective. When factoring time and cost into your purchase, our lithium ion battery banks come out ahead every time. Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults.
4. Green Energy Battery: Made from 100% safe, nontoxic, renewable energy, Battle Born Batteries last for more cycles and can be charged and discharged repeatedly (and charge faster than any other battery). We make our renewable, sustainable green energy batteries because they’re simply better than anything else out there, including other green batteries.
Parcel includes：

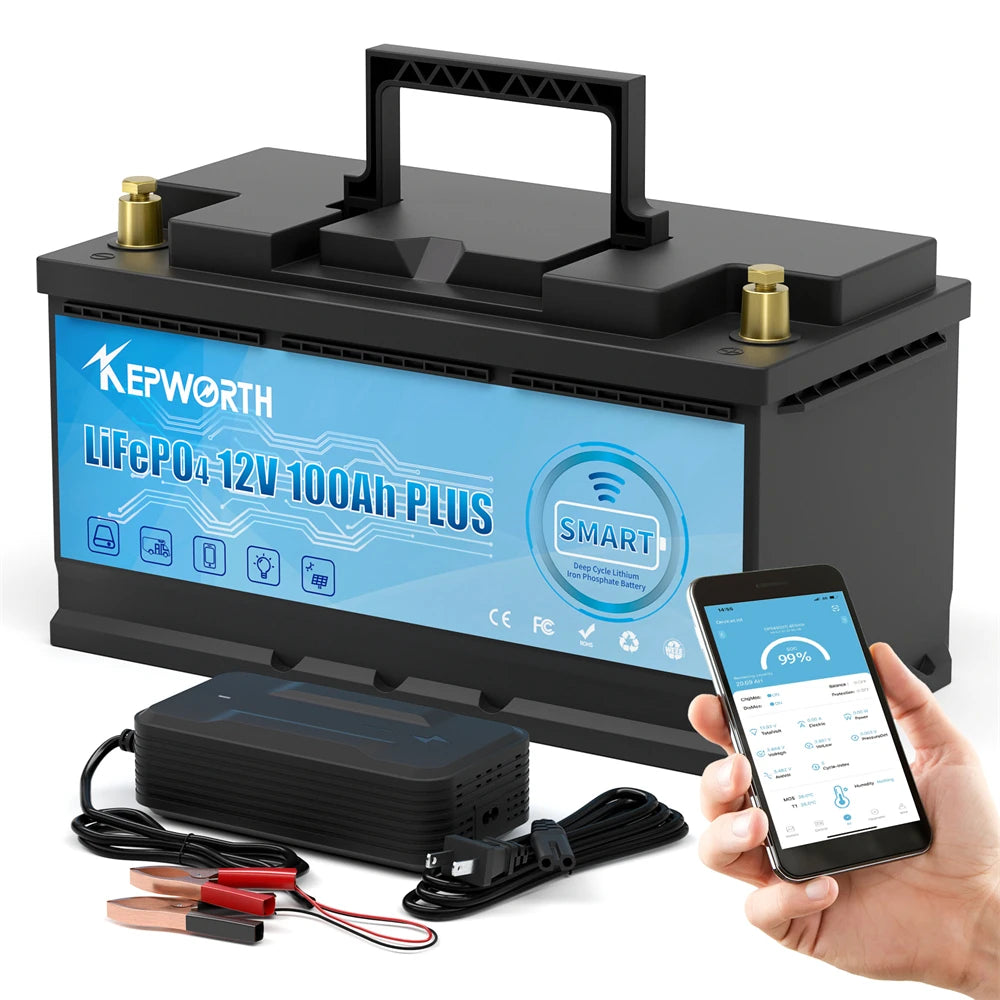

1.One LiFePO4 Energy Storage Battery
2.One Specialized Charger(7A)
7A charger with European standard or American standard or the British standard or Australia standard plug (according to buyer's national standards).
1. Charging voltage: 14.6V
2. Charging current: 7A
3. Input voltage: 100v-240v
(About charging: The red indicator light indicates that the charging is in progress, and the green indicator light indicates that the charging is completed.)
About BMS:
1,Support Languages: Spanish, German, English, Chinese, Russian, Norwegian and French
Overview:The Bluetooth communication mobile phone APP system mainly connects the special Bluetooth device through the Bluetooth function of the mobile phone, and the Bluetooth device communicates with the BMS, so that the user can detect the BMS information directly through the mobile phone and carry out the functions of reading, managing, querying and managing, thusreplacing the special BMS equipment and software.
Bluetooth communication mobile phone APP system includes real-time data reading, protection parameters, core characteristics, acquisition board settings, temperature protection, system settings and query functions.
The main functions of the system are:
1) Parameter reading: alarm fault information, number of temperature, number of battery strings.
2) protection parameters: monomer over voltage protection, monomer under voltage protection, overall over voltage protection, overall under voltage protection, differential pressure protection, charging over current protection, discharge over current protection.
3) Core characteristics: battery type, rated capacity, monomer reference voltage, dormant waiting time, SOC setting, balanced opening voltage, balanced opening pressure difference.
4) Acquisition board setting: number of acquisition board, number of acquisition board 1 unit, number of acquisition board 2 unit, number of acquisition board 3 unit, number of acquisition board 1 unit temperature, number of acquisition board 2 unit temperature, number of acquisition board 3 unit temperature.
5) Temperature protection: charging high temperature protection, charging low temperature protection, discharge high temperature protection, discharge low temperature protection, temperature difference protection, power tube temperature protection.
6) System settings: charging switch, discharge switch, restart system, restore factory settings, current to zero, reset password.
System Characteristics：
1) Alarm prompt: alarm fault view, alarm prompt automatic elimination after fault release.
2) Bluetooth: When the user opens the software, if the user
does not turn on the Bluetooth function, then automatically prompt to turn on the phone Bluetooth, unplug or sleep automatically disconnect Bluetooth connection.
